Innovative research and development

Master core technologies, promote industrial transformation and upgrading, and enhance international competitiveness

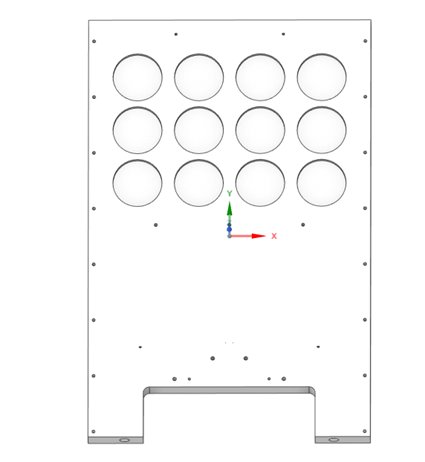

Design scheme of industrial cold plate2D Drawing

• Dimensions (L*W*H) mm)
  Weight
• 710*460*36mm
  28233g (Only reference)

Parameter comparison

• Solution-1
  Model
  Power Dissemination
  Specification
• Heater
  φ 80mm, 110*50mm
  TDP = 520W*12pcs+1130W*6pcs=13020W
  --
• liquid
  water
  27.2 LPM
  --

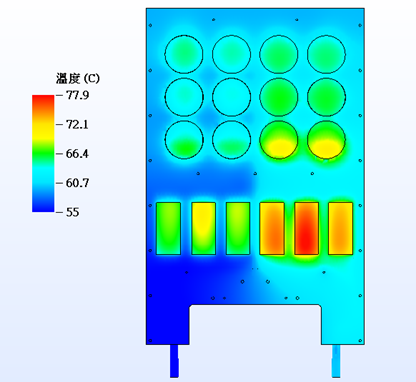

H.S. Temperature LayoutThe temperature difference of the water mouth is 8.1 C

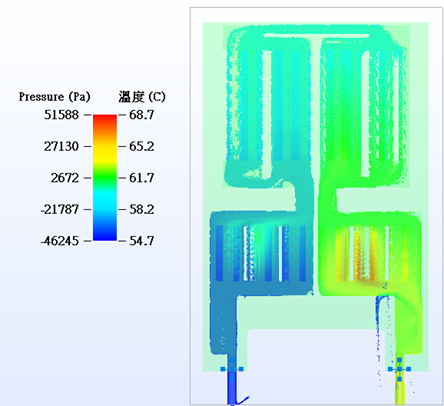

H.S. Pressure. LayoutThe nozzle difference is 96282Pa

The highest temperature in the week is 68.4 C and the temperature rises to 13.4 C

Disperser temperature rise 21.5 C
