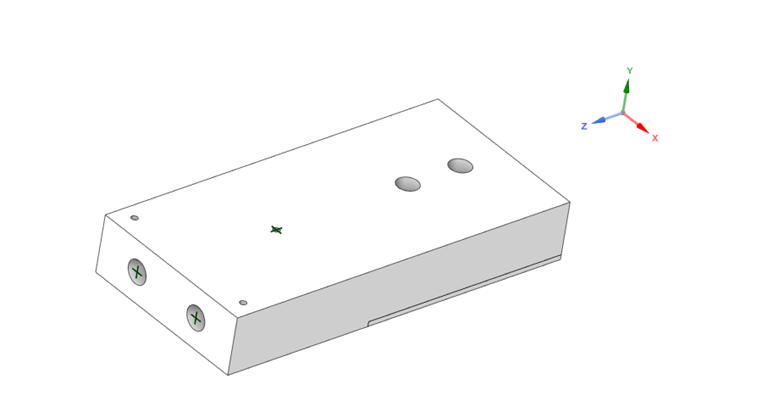

Design scheme of aluminum brazing water-cooled plate2D Drawing

• Dimensions (L*W*H) mm)
  Weight
• 190*90*30mm
  3722g (Only reference)

Parameter comparison

• Solution-1
  Model
  Power Dissemination
  Specification
• Heater
  D80mm
  TDP = 800W
  --
• liquid
  water
  6LPM
  --

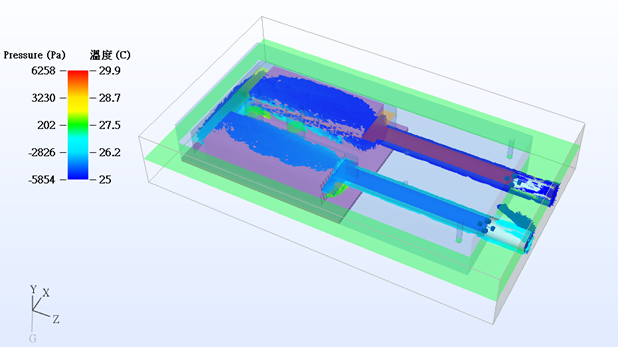

H.S. Temperature LayoutTemperature difference between inlet and outlet water 1.6 C < 10C

H.S. Pressure. LayoutFlow resistance 11187Pa < 50KPa

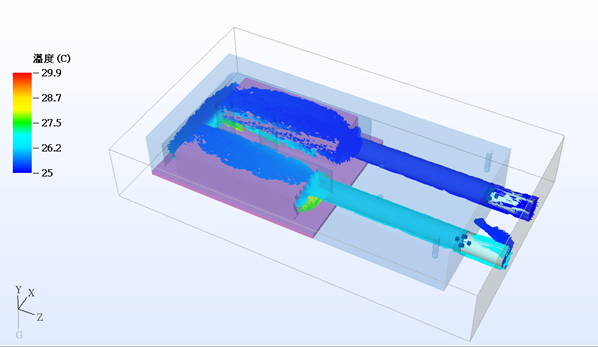

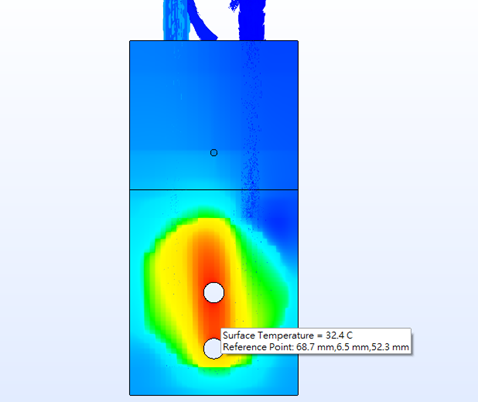

The highest temperature of heat source contact surface is 32.4 C, and the temperature rise of radiator is 7.4 C < 30C
